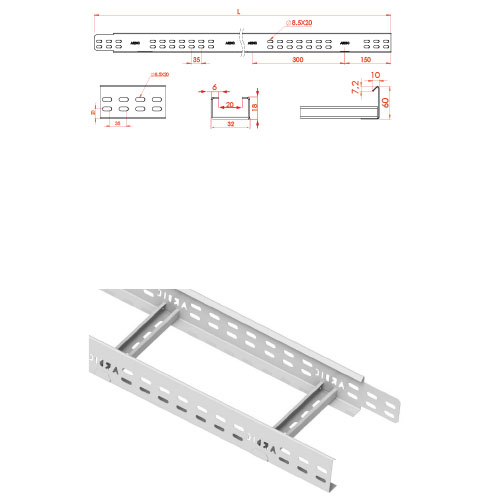

Cable Ladder M6 Series (PG to ISO 10346)
| Order Code | Stock Code | H mm | W mm | T mm | Weight (kg/mt) |
| A 10-M6-10 PG | 01008A10M610PG | 60 | 100 | 1.0 | 1.330 |
| A 10-M6-12 PG | 01008A10M612PG | 60 | 100 | 1.2 | 1.730 |
| A 10-M6-15 PG | 01008A10M615PG | 60 | 100 | 1.5 | 1.980 |
| A 10-M6-20 PG | 01008A10M620PG | 60 | 100 | 2.0 | 2.300 |
| A 20-M6-10 PG | 01008A10M610PG | 60 | 200 | 1.0 | 1.480 |
| A 20-M6-12 PG | 01008A20M612PG | 60 | 200 | 1.2 | 1.870 |
| A 20-M6-15 PG | 01008A20M615PG | 60 | 200 | 1.5 | 2.130 |
| A 20-M6-20 PG | 01008A20M620PG | 60 | 200 | 2.0 | 2.440 |
| A 30-M6-10 PG | 01008A30M610PG | 60 | 300 | 1.0 | 1.610 |
| A 30-M6-12 PG | 01008A30M612PG | 60 | 300 | 1.2 | 2.000 |
| A 30-M6-15 PG | 01008A30M615PG | 60 | 300 | 1.5 | 2.260 |
| A 30-M6-20 PG | 01008A30M620PG | 60 | 300 | 2.0 | 2.580 |
| A 40-M6-10 PG | 01008A40M610PG | 60 | 400 | 1.0 | 1.890 |
| A 40-M6-12 PG | 01008A40M612PG | 60 | 400 | 1.2 | 2.290 |
| A 40-M6-15 PG | 01008A40M615PG | 60 | 400 | 1.5 | 2.540 |
| A 40-M6-20 PG | 01008A40M620PG | 60 | 400 | 2.0 | 2.860 |
| A 50-M6-10 PG | 01008A50M610PG | 60 | 500 | 1.0 | 2.060 |
| A 50-M6-12 PG | 01008A50M612PG | 60 | 500 | 1.2 | 2.450 |
| A 50-M6-15 PG | 01008A50M615PG | 60 | 500 | 1.5 | 2.710 |
| A 50-M6-20 PG | 01008A50M620PG | 60 | 500 | 2.0 | 3.030 |
| A 60-M6-10 PG | 01008A60M610PG | 60 | 600 | 1.0 | 2.240 |
| A 60-M6-12 PG | 01008A60M612PG | 60 | 600 | 1.2 | 2.640 |
| A 60-M6-15 PG | 01008A60M615PG | 60 | 600 | 1.5 | 2.890 |
| A 60-M6-20 PG | 01008A60M620PG | 60 | 600 | 2.0 | 3.210 |
DESCRIPTIONS:
1- PG Cable Ladder standart length is 3000 mm.
2- Each PG Cable Ladder needs 2 pcs straight connectors.
3- Each straight connector needs 4 sets of M8x15 nuts&bolts.
4- Stainless steel cable ladders can be manufactured according to request. (with special rungs.)
5- Please indicate order code and the Type of coating in your orders.
6- Different sheet thicknesses can be produced.
INFORMATION:
L: Length
T: Thickness
W: Width
PG: Pregalvanized
HDG: Hot Dip Galvanized
Material Thickness and Weight Tolerans: ± 10
