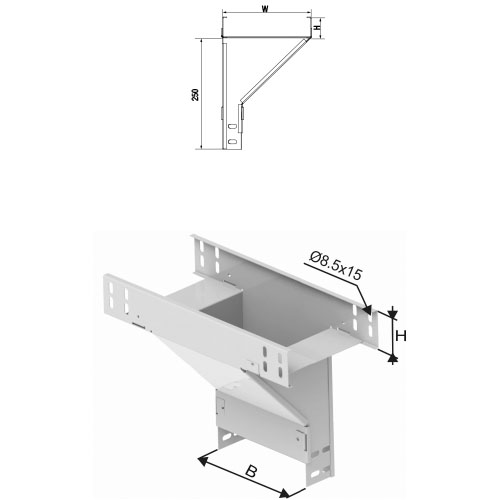

Vertical TEE H60

Order CodeStock CodeH mmW mmWeight (kg/mt)
ADT08-6A PG01004ADT086APG60801.750
ADT10-6A PG01004ADT106APG601001.985
ADT12-6A PG01004ADT126APG601202.050
ADT15-6A PG01004ADT156APG601502.190
ADT16-6A PG01004ADT166APG601602.390
ADT20-6A PG01004ADT206APG602003.220
ADT22-6A PG01004ADT226APG602253.590
ADT25-6A PG01004ADT256APG602503.955
ADT30-6A PG01004ADT306APG603004.685
ADT40-6A PG01004ADT406APG604008.500
ADT45-6A PG01004ADT456APG604509.820
ADT50-6A PG01004ADT506APG6050011.140
ADT60-6A PG01004ADT606APG6060013.980
ADT08-6A HDG01004ADT086AHDG60801.925
ADT10-6A HDG01004ADT106AHDG601002.180
ADT12-6A HDG01004ADT126AHDG601202.255
ADT15-6A HDG01004ADT156AHDG601502.410
ADT16-6A HDG01004ADT166AHDG601602.630
ADT20-6A HDG01004ADT206AHDG602003.545
ADT22-6A HDG01004ADT226AHDG602253.950
ADT25-6A HDG01004ADT256AHDG602504.350
ADT30-6A HDG01004ADT306AHDG603005.150
ADT40-6A HDG01004ADT406AHDG604009.350
ADT45-6A HDG01004ADT456AHDG6045010.805
ADT50-6A HDG01004ADT506AHDG6050012.255
ADT60-6A HDG01004ADT606AHDG6060015.380


1- “A,B and C” sizes are equal ın standard production ıf required

“B and C Sizes” can be changed by using  Reducing Parts.109

2- Please visit page 109 for other radius

3- Different sheet thicknesses can be produced.

4- Please indicate order code and the shape of coating in your orders.


L: Length

T: Thickness

W: Width

PG: Pregalvanized

HDG: Hot Dip Galvanized

Material Thickness and Weight Tolerans: ± 10
