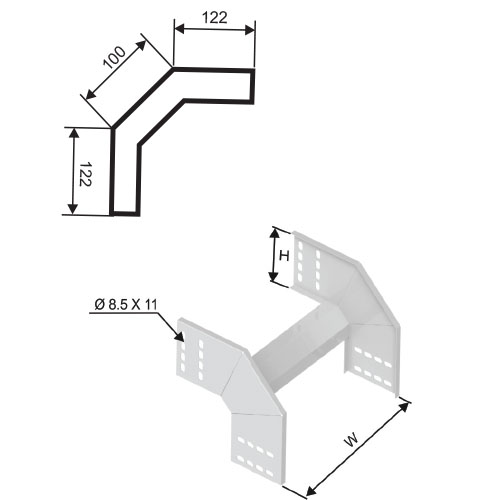

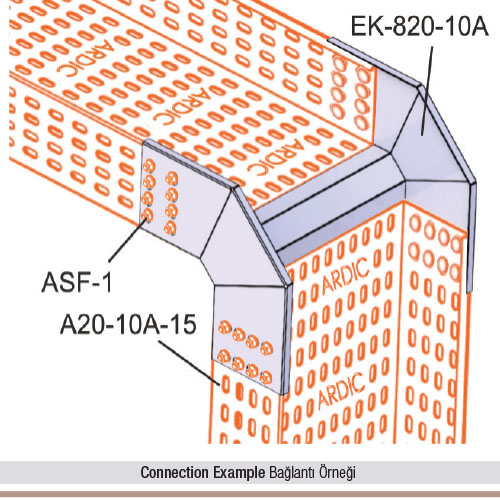

Outside Vertical Bends 90’ (Fixed Acute Angle) H100

Order CodeStock CodeH mmW mmWeight (kg/mt)
EK 810-10A PG01004EK81010APG1001000.715
EK 812-10A PG01004EK81210APG1001200.730
EK 815-10A PG01004EK81510APG1001500.720
EK 816-10A PG01004EK81610APG1001600.760
EK 820-10A PG01004EK82010APG1002000.790
EK 822-10A PG01004EK82210APG1002250.805
EK 825-10A PG01004EK82510APG1002500.835
EK 830-10A PG01004EK83010APG1003000.865
EK 840-10A PG01004EK84010APG1004000.940
EK 845-10A PG01004EK84510APG1004500.980
EK 850-10A PG01004EK85010APG1005001,015
EK 860-10A PG01004EK86010APG1006001,090
EK 810-10A HDG01004EK81010AHDG1001000.790
EK 812-10A HDG01004EK81210AHDG1001200.805
EK 815-10A HDG01004EK81510AHDG1001500.800
EK 816-10A HDG01004EK81610AHDG1001600.840
EK 820-10A HDG01004EK82010AHDG1002000.870
EK 822-10A HDG01004EK82210AHDG1002250.885
EK 825-10A HDG01004EK82510AHDG1002500.920
EK 830-10A HDG01004EK83010AHDG1003000.955
EK 840-10A HDG01004EK84010AHDG1004001,035
EK 845-10A HDG01004EK84510AHDG1004501,075
EK 850-10A HDG01004EK85010AHDG1005001,120
EK 860-10A HDG01004EK86010AHDG1006001,200


1- “A and B” sizes are equal in standard production if required

“B Sizes” can be changed by using reducing parts

2- Please visit page 109 for other radius

3- Different sheet thicknesses can be produced.

4- Please indicate order code and the shape of coating in your orders.


L: Length

T: Thickness

W: Width

PG: Pregalvanized

HDG: Hot Dip Galvanized

Material Thickness and Weight Tolerans: ± 10
