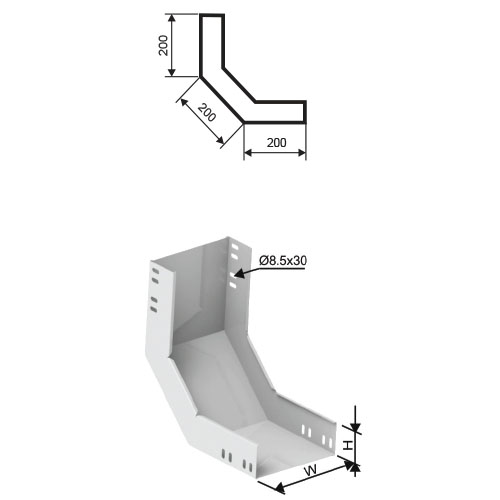

Inside Vertical Bends 90˚ (Fixed Wide Angle) H60

Order CodeStock CodeH mmW mmWeight (kg/mt)
708-6A PG01004AA7086APG60801,545
710-6A PG01004AA7106APG601001,685
712-6A PG01004AA7126APG601201,800
715-6A PG01004AA7156APG601501,950
716-6A PG01004AA7166APG601602,085
720-6A PG01004AA7206APG602002,370
722-6A PG01004AA7226APG602252,530
725-6A PG01004AA7256APG602502,720
730-6A PG01004AA7306APG603003,065
740-6A PG01004AA7406APG604005,015
745-6A PG01004AA7456APG604505,475
750-6A PG01004AA7506APG605005,935
760-6A PG01004AA7606APG606006,855
708-6A HDG01004AA7086AHDG60801,700
710-6A HDG01004AA7106AHDG601001,850
712-6A HDG01004AA7126AHDG601201,980
715-6A HDG01004AA7156AHDG601502,145
716-6A HDG01004AA7166AHDG601602,295
720-6A HDG01004AA7206AHDG602002,610
722-6A HDG01004AA7226AHDG602252,800
725-6A HDG01004AA7256AHDG602502,990
730-6A HDG01004AA7306AHDG603003,370
740-6A HDG01004AA7406AHDG604005,515
745-6A HDG01004AA7456AHDG604506,025
750-6A HDG01004AA7506AHDG605006,530
760-6A HDG01004AA7606AHDG606007,540


1- “A and B” sizes are equal in standard production if required

“B Sizes” can be changed by using reducing parts

2- Please visit page 109 for other radius

3- Different sheet thicknesses can be produced.

4- Please indicate order code and the shape of coating in your orders.


L: Length

T: Thickness

W: Width

PG: Pregalvanized

HDG: Hot Dip Galvanized

Material Thickness and Weight Tolerans: ± 10
