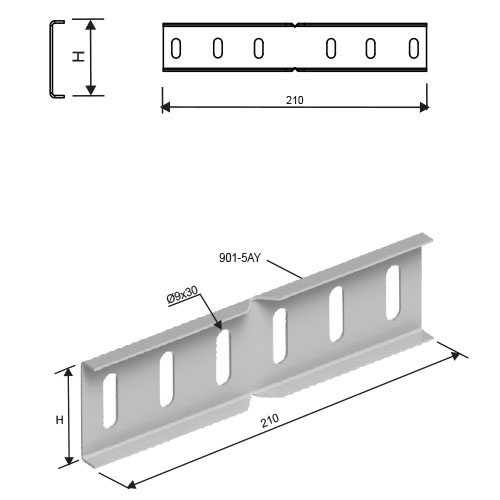

Cable Trays Horizontal Angle Connector

Order CodeStock CodeH mmW mmWeight (kg/mt)
901-4AY PG01004A9014AYPG402100.190
901-5AY PG01004A9015AYPG502100.160
901-6AY PG01004A9016AYPG602100.255
901-8AY PG01004A9018AYPG802100.305
901-10AY PG01004A90110AYPG1002100.260
901-4AY HDG01004A9014AYHDG402100.210
901-5AY HDG01004A9015AYHDG502100.180
901-6AY HDG01004A9016AYHDG602100.280
901-8AY HDG01004A9018AYHDG802100.335
901-10AY HDG01004A90110AYHDG1002100.290


1-This item is sold as single piece. To make one set 2 pcs of

horizontal angle connector must be used.

2- Bolt & nuts are sold separately.


L: Length

T: Thickness

W: Width

PG: Pregalvanized

HDG: Hot Dip Galvanized

Material Thickness and Weight Tolerans: ± 10
