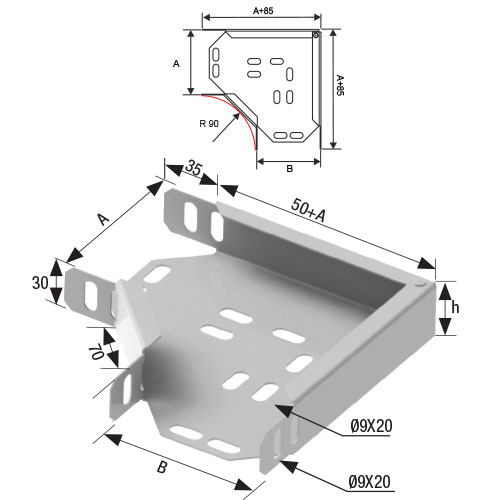

Cable Trays 90˚Bends H50

Order CodeStock CodeH mmW mmWeight (kg/mt)
105-5 PG01003A1055PG50500,240
108-5 PG01003A1085PG50800,310
110-5 PG01003A1105PG501000,360
112-5 PG01003A1125PG501200,410
115-5 PG01003A1155PG501500,500
116-5 PG01003A1165PG501600,530
120-5 PG01003A1205PG502000,670
122-5 PG01003A1225PG502250,760
125-5 PG01003A1255PG502500,860
130-5 PG01003A1305PG503001,070
140-5 PG01003A1405PG504002,150
145-5 PG01003A1455PG504502,530
150-5 PG01003A1505PG505002,960
160-5 PG01003A1605PG506004,960
105-5 HDG01003A1055HDG50500,260
108-5 HDG01003A1085HDG50800,340
110-5 HDG01003A1105HDG501000,390
112-5 HDG01003A1125HDG501200,450
115-5 HDG01003A1155HDG501500,540
116-5 HDG01003A1165HDG501600,580
120-5 HDG01003A1205HDG502000,720
122-5 HDG01003A1225HDG502250,820
125-5 HDG01003A1255HDG502500,920
130-5 HDG01003A1305HDG503001,150
140-5 HDG01003A1405HDG504002,320
145-5 HDG01003A1455HDG504502,740
150-5 HDG01003A1505HDG505003,190
160-5 HDG01003A1605HDG506005,350

DESCRIPTIONS:

1- “A ve B” Sizes Are Equal In Standard Production If Required “B Sizes” Can Be Changed By Using  Reducing Parts.

2- Please visit page 109 for other radius

3- Different sheet thicknesses can be produced.

4- Please indicate order code and the type of coating in your orders.

INFORMATION:

L: Length

T: Thickness

W: Width

PG: Pregalvanized

HDG: Hot Dip Galvanized

Material Thickness and Weight Tolerans: ± 10
