Cable Ladders 45o Horizantal Bend Covers

Order CodeStock CodeH mmW mmWeight (kg/mt)
410-MK PG01010410MKPG101000.790
420-MK PG01010420MKPG102001.540
430-MK PG01010430MKPG103002.390
440-MK PG01010440MKPG104004.440
450-MK PG01010450MKPG105005.830
460-MK PG01010460MKPG106007.350
470-MK PG01010470MKPG1070010.260
480-MK PG01010480MKPG1080013.930
490-MK PG01010490MKPG1090019.060
4100-MK PG010104100MKPG10100026.030
410-MK HDG01010410MKHDG101000.870
420-MK HDG01010420MKHDG102001.690
430-MK HDG01010430MKHDG103002.630
440-MK HDG01010440MKHDG104004.880
450-MK HDG01010450MKHDG105006.410
460-MK HDG01010460MKHDG106008.080
470-MK HDG01010470MKHDG1070011.290
480-MK HDG01010480MKHDG1080015.330
490-MK HDG01010490MKHDG1090020.970
4100-MK HDG010104100MKHDG 10100028.630

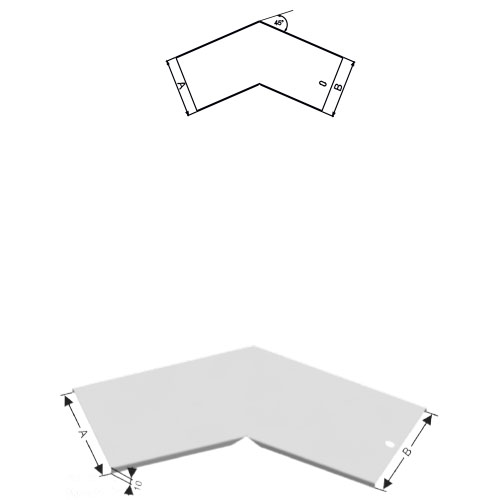

1- “A ve B” Sizes Are Equal In Standard Production If Required

“B Sizes” Can Be Changed By Using  Reducing Parts.

2- Please visit page 113 for other radius

3- Different sheet thicknesses can be produced.

4- Please indicate order code and the shape of coating in your orders.


L: Length

T: Thickness

W: Width

PG: Pregalvanized

HDG: Hot Dip Galvanized

Material Thickness and Weight Tolerans: % ± 10
